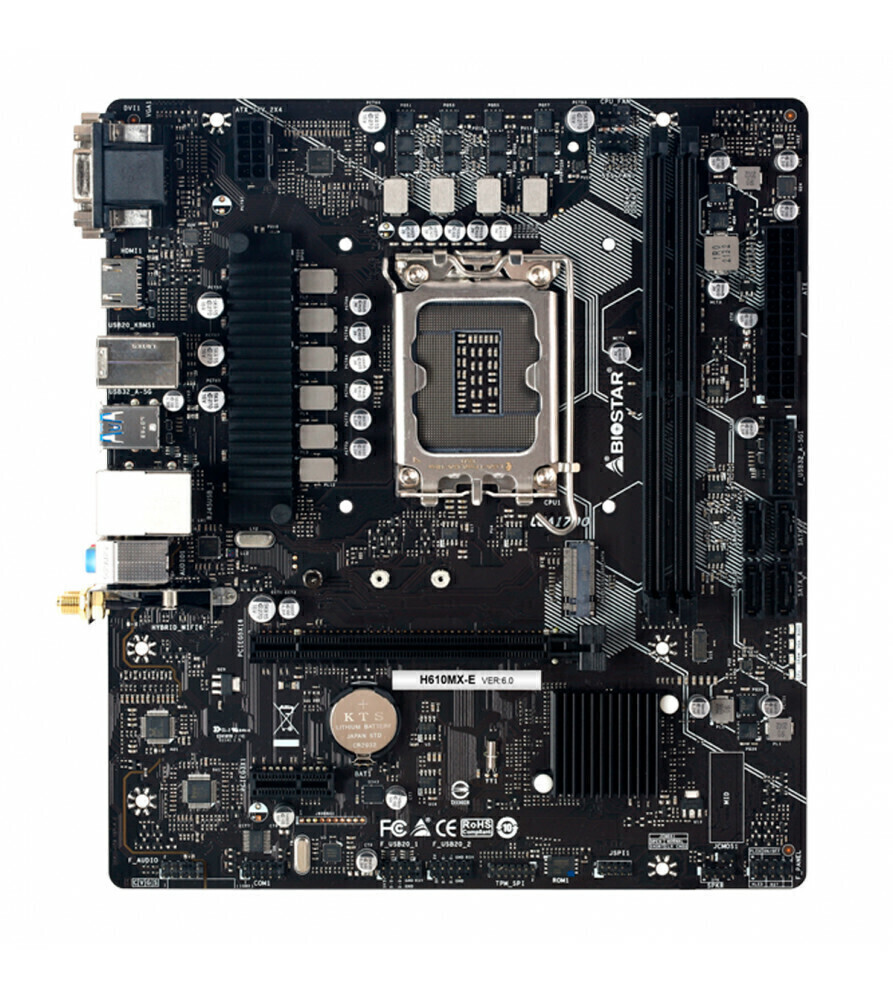

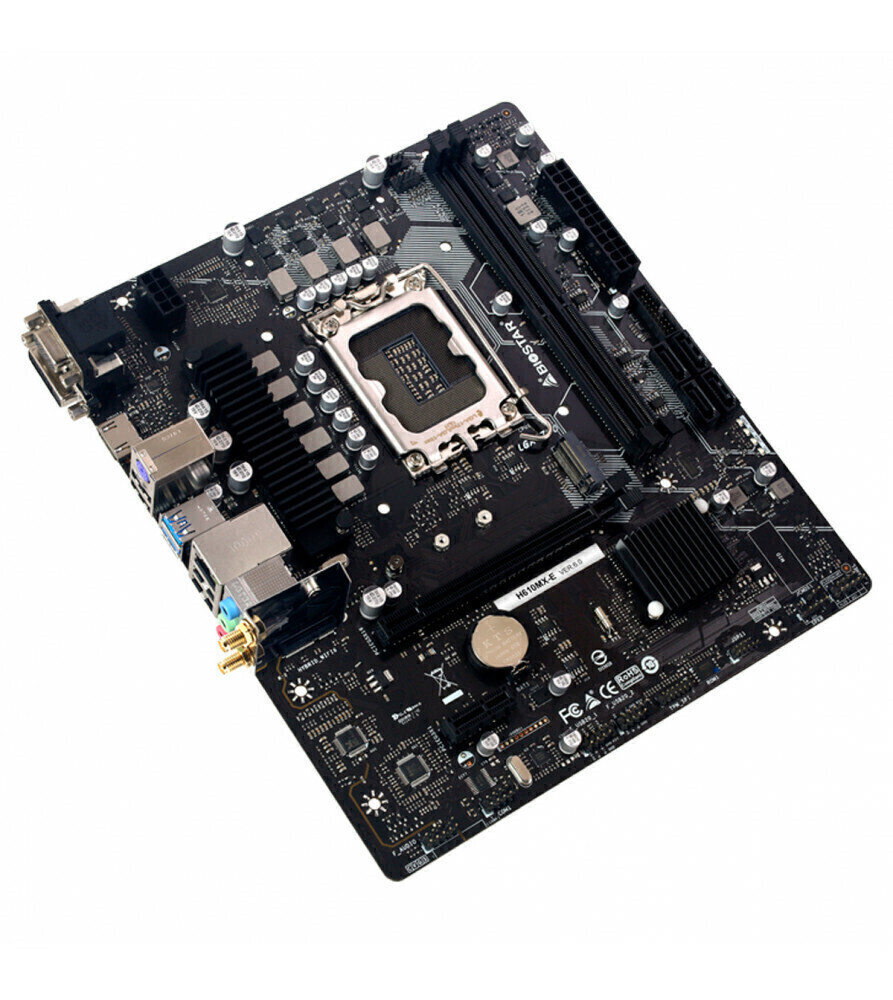

Biostar H610MX-E Para Intel 12th Gen DDR4 LGA 1700
H610MX-E
CARACTERISTICAS:
Chipset: Intel H610
CPU SUPPORT: Support for 12th/ 13th/ 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
MEMORY SSupports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
INTEGRATED VIDEO
Supports DX12
Supports HDCP
STORAGE
Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports
Intel H610 Chipset
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
Supports M.2 Type 2242 /2260 /2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD
4 x SATA III Connector (6Gb/s)
LAN: Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC: AALC897
7.1 Channels, High Definition Audio
USB
4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT
INTEL 12th/13th/14th Processors
1 x PCIe 4.0 x16 Slot (x16 mode)
Intel H610 Chipset
1 x PCIe 3.0 x1 Slot
REAR I/O
1 x WIFI Antenna Port
1 x PS/2 Keyboard/Mouse Port
1 x HDMI
1 x VGA+DVI Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
DIMENSION: Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
